Fotric TF3 Acoustic Imaging Camera
Fotric TF3 Acoustic Imaging Camera
Received my Pro SE diagnostic tool today. Works perfectly, very satisfied.
Great equipment, great service. Two Stealths installed and very happy with the work done. Thank
The product quality is outstanding.
Couldn't load pickup availability
We accept
240×320 IR Resolution, High Thermal Sensitivity
Clearer detail presentation makes it easy to quickly identify temperature distribution and abnormal areas, presenting more delicate and sharper image quality.
Thermal
T-DEF®
PIP
Visible light
Four Image Modes
Supports four display modes: infrared image, visible light temperature measurement (T-DEF®), Picture-in- Picture and visible light image to meet the observation, positioning and analysis needs in different scenarios.
Histogram Temperature Gradient Imaging (T-TWB®)
Optimize picture performance under large dynamic range, automatically tone the image based on temperature distribution, and help users see more gradients and details in complex environments.
TWB(Off)
TWB(On)
Focus-free Imaging
Point and shoot, intuitive design. Made for quick start and avoid temperature measurement deviations caused by inaccurate focus.
Compact and Lightweight
The compact body weighs only 430g, making it easy to
carry and operate with one hand. Suitable for mobile, on-site inspections and long-term use.
Large FOV
38° × 50° wide FOV for wider coverage, ideal for rapid
inspection and short-range large-area measurement.
Thermal Imaging Principle
Thermal imaging cameras rely on passive imaging and are very safe to operate.
Thermal Radiation
Lens
Detector
Thermal Image
Thermal imaging camera is a "Temperature Camera"
Thermal imagers detect infrared energy emitted by objects and convert it into intuitive thermal images, making temperature differences visible at a glance. They quickly reveal overheating, poor connections, heat loss, and other hidden issues without physical contact.
Ideal for electrical inspection, equipment maintenance, building diagnostics, and home safety checks, thermal imagers provide full-scene temperature distribution, faster inspections, and reliable operation even in complete darkness.
Applications
Electrical equipment inspection
-
Electrical circuits overload
-
Loose or corroded electrical contacts
-
Insulation failure
Mechanical equipment inspection
-
Motors, pumps and fans inspection
-
Bearing wear and lubrication failure detection
-
Identify shaft misalignment
Building surface temperature inspection
-
External wall water seepage detection
-
Material insulation performance inspection
-
Exterior wall cavity assessment

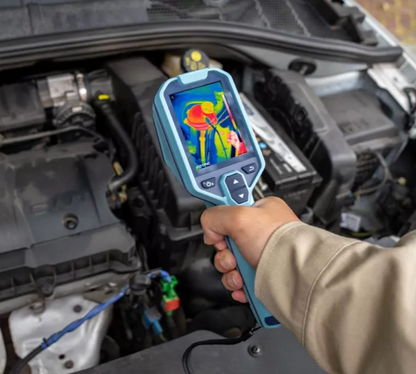

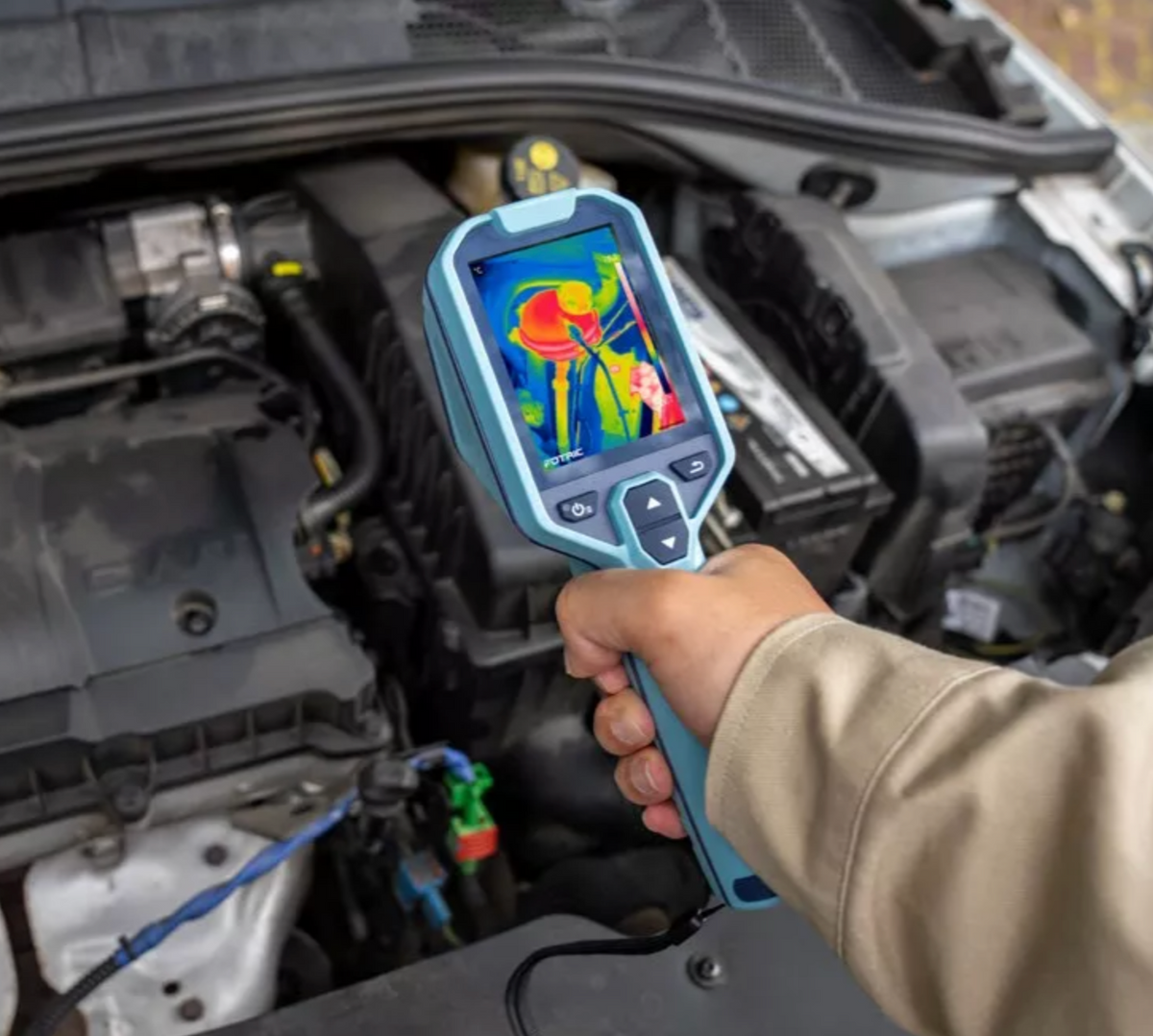

Car fault diagnosis
-
Engine system temperature distribution
-
Brake inspection
-
AC outlet inspection
HVAC temperature diagnosis
-
Condenser duct blockage detection
-
Insulation condition inspection
-
Water leakage location detection
Floor heating diagnosis
-
Accurate location of leaks
-
Identification of pipe blockage
-
Identification of unevenly hot and cold pipes
Specifications
Product Model
FOTRIC TF3 Compact Thermal Imaging Camera
|
Infrared Resolution |
240 × 320
|
|
Detector Type |
Uncooled infrared focal plane detector
|
|
Thermal Sensitivity (NETD) |
<30 mK @ 30℃
|
|
Spectral Response Range |
8–14 μm
|
|
Frame Rate |
30 Hz
|
|
Field of View (FOV) |
38° × 50°
|
|
Spatial Resolution (IFOV) |
2.76 mrad
|
|
Focusing Mode |
Focus-free
|
|
Temperature Range |
-20 to 450℃
|
|
Temperature Accuracy |
±2℃ or 2%, whichever is greater (ambient temperature 15–35℃ , target temperature >0℃ , calibrated at 1 m)
|
|
Analysis Software |
AnalyzIR professional thermal imaging analysis software
|
|
Display |
3.2-inch, 640 × 480 pixels, IPS LCD display
|
|
Image Modes |
Infrared image, visible-light temperature measurement (T-DEF®), picture-in-picture, visible light
|
|
Visible-light Temperature Measurement (T-DEF®) |
Visible-light temperature measurement;adjustable infrared image transparency from 0% to 100%
|
|
Palette |
Supports 4 general palettes: Rain, Iron, Grey, Rainbow
|
|
Digital Camera |
2 MP industrial-grade digital camera
|
|
Battery Type |
3.6 V, 4800 mAh rechargeable lithium battery
|
|
Battery Runtime |
Continuous working time ≥ 6.5 hours(actual runtime depends on ambient and usage conditions)
|
|
Supported Languages |
English, German, French, Spanish,Portuguese, Italian, Polish, Japanese,Korean, Traditional Chinese, Thai,Simplified Chinese
|
